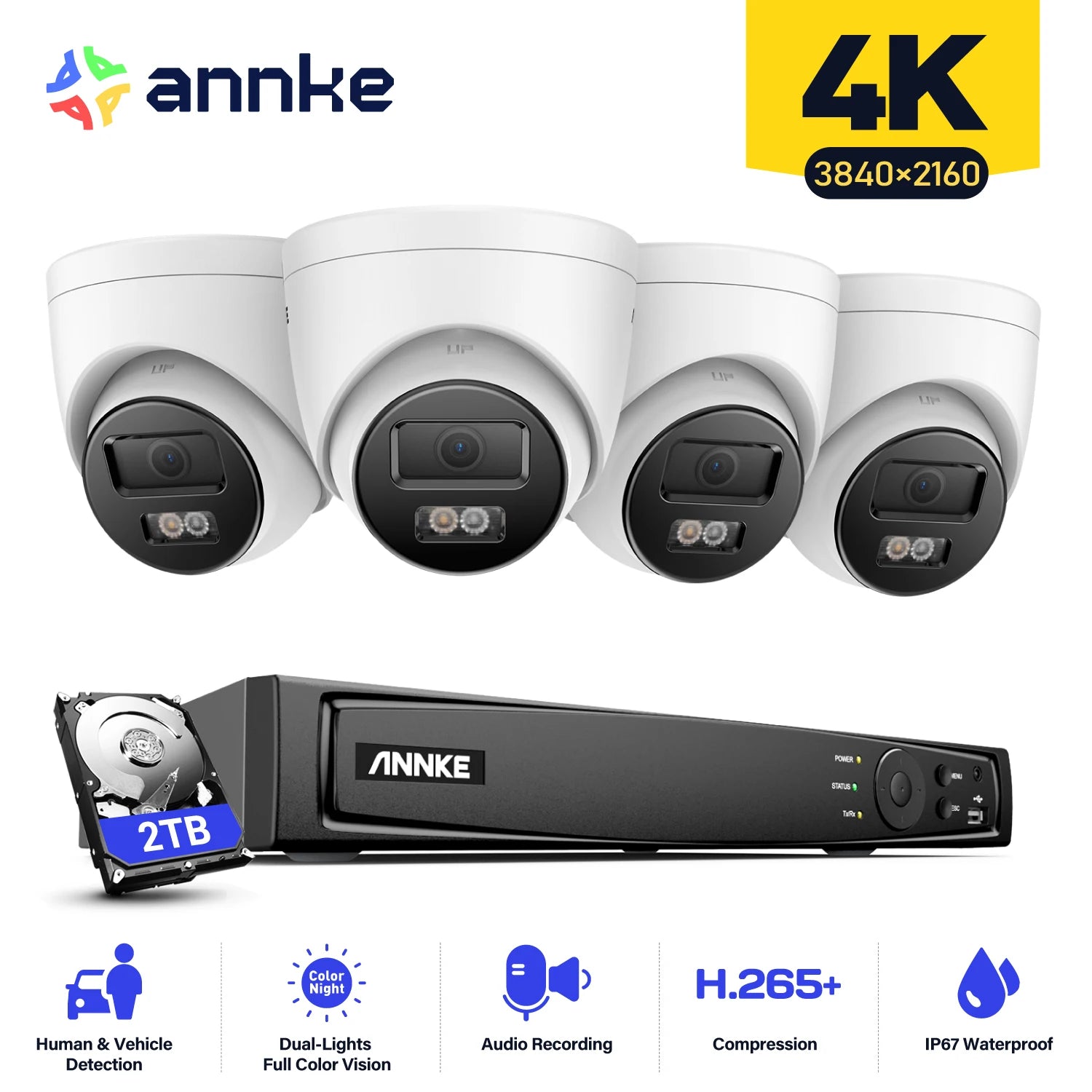

ANNKE 4K Ultra HD POE Video Surveillance System

ANNKE 4K Ultra HD POE Video Surveillance System

$650.99
$0.00 $650.99
Sale Sold out
Ships From
Build-in HDD

SPECIFICATIONS



Brand Name: ANNKE

Cable Length: 30m,18m

Certification: CE,FCC

Hign-concerned Chemical: None

Model Number: N48PAW-I91DM

PCS of Camera: 4PCS

Resolution: 8MP

Smart home platform: other

TV System: NTSC,PAL

Video Input: 8 Channel

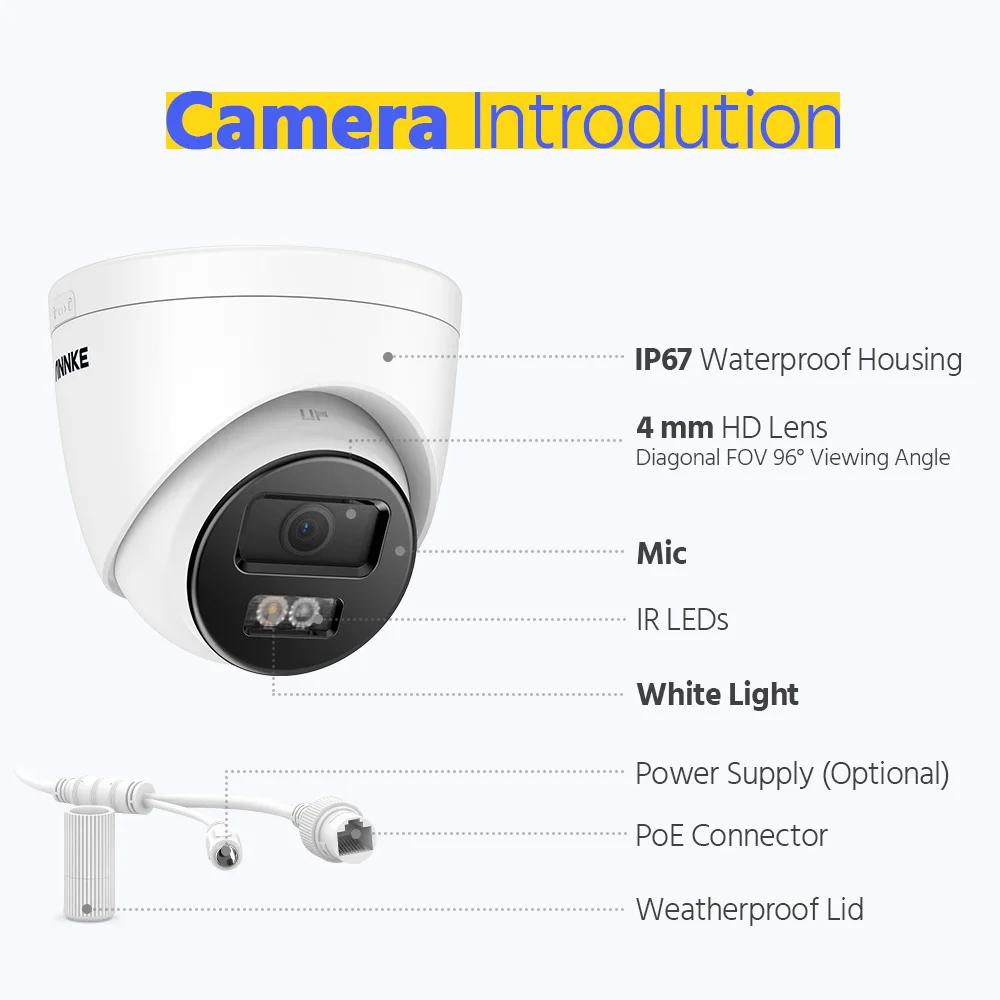

8MP IP Camera Key features:
★ 4K smart dual light turret network camera
★ 4mm@F1.6 lens brings everything back to life
★ Efficient H.265+ compression technology
★ Motion detection 2.0 with human & Vehicle Detection
★ Clear day and night vision with 3D DNR and 120DB WDR
★ Built-in microphone for real-time audio security
★ Support on-board storage up to 512 GB (SD card slot)
★ IP67 Dust and Waterproof Rating
★ Support PoE &DC12V

NVR Key features:
· 8MP high definition Real-time live viewing
· Live view, recording&playback up to 8 MP resolution
· Up to 8 channel IP cameras can be connected with built-in PoE inputs· Advanced H.265+ Video Compression
· Supports iPhone、iPad、Android mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (3840 × 2160) resolution
· Annke Vision for easy remote view

                                      [Intelligent dual light]

Smart Dual-Light: advanced technology with long range,  IR light works normally at night, and it switches to white light when human or vehicle are detected.

[120 dB True WDR & 3D DNR]
True WDR can be used in various scenes, whether it is backlight or backlight, you can see clearly;
BLC/3D DNR/HLC image enhancement technology, the image is cleaner and the night vision is clearer
[More Videos & Less Bandwidth with H.265+]
The leading H.265+ compress tech enables the 4K system to record longer videos & consume less bandwidth without losing 4K quality, saving you up to 80% storage space
Hi-Fi Audio Recording
The built-in noise-cancelling mic picks up the ambient voice clearly from up to 20 ft away, enhancing the security coverage & the ability to interpret motion events.[Support Home Assistant & Apple HomeKit]
Besides free ANNKE Vision App for remote access, you may integrate the system to third-party platforms, like Blue Iris, Synology, Milestone, Home Assistant, Apple HomeKit, etc.
24/7 Monitoring at Every Angle
The versatile PoE security camera system records videos continuously, providing true 24/7 all-around protection for your home, office, garage, supermarket, etc.
Remote Access and Smart Motion Alerts

Access & control the system remotely with free ANNKE software via 3G/4G/5G or WiFi on your smartphone, tablet or computer when you are in the office or traveling. Get instant app pushes & email alerts with snapshots when there are motion events.

Customized Motion Areas
Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.
Outdoor IP67 Weatherproof
with IP67 weatherproof rating, the Ethernet camera braves anything, from torrential downpours to freezing/broiling temperatures (-22 °F – 140 °F), perfect for both outdoor & indoor installation. The solid housing provides fast heat dissipation & corrosion resistance.

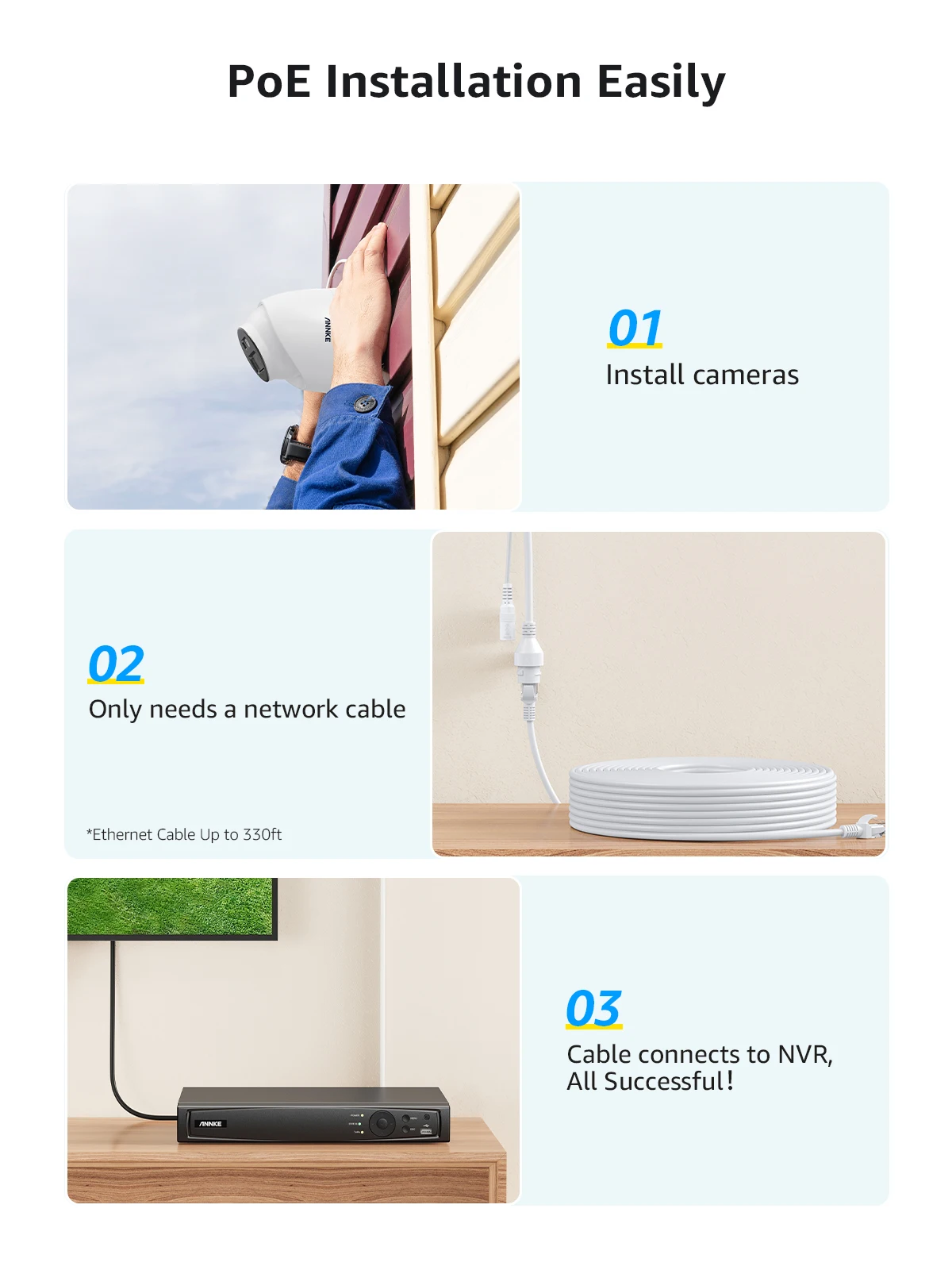

Easy Plug and Play PoE Installation

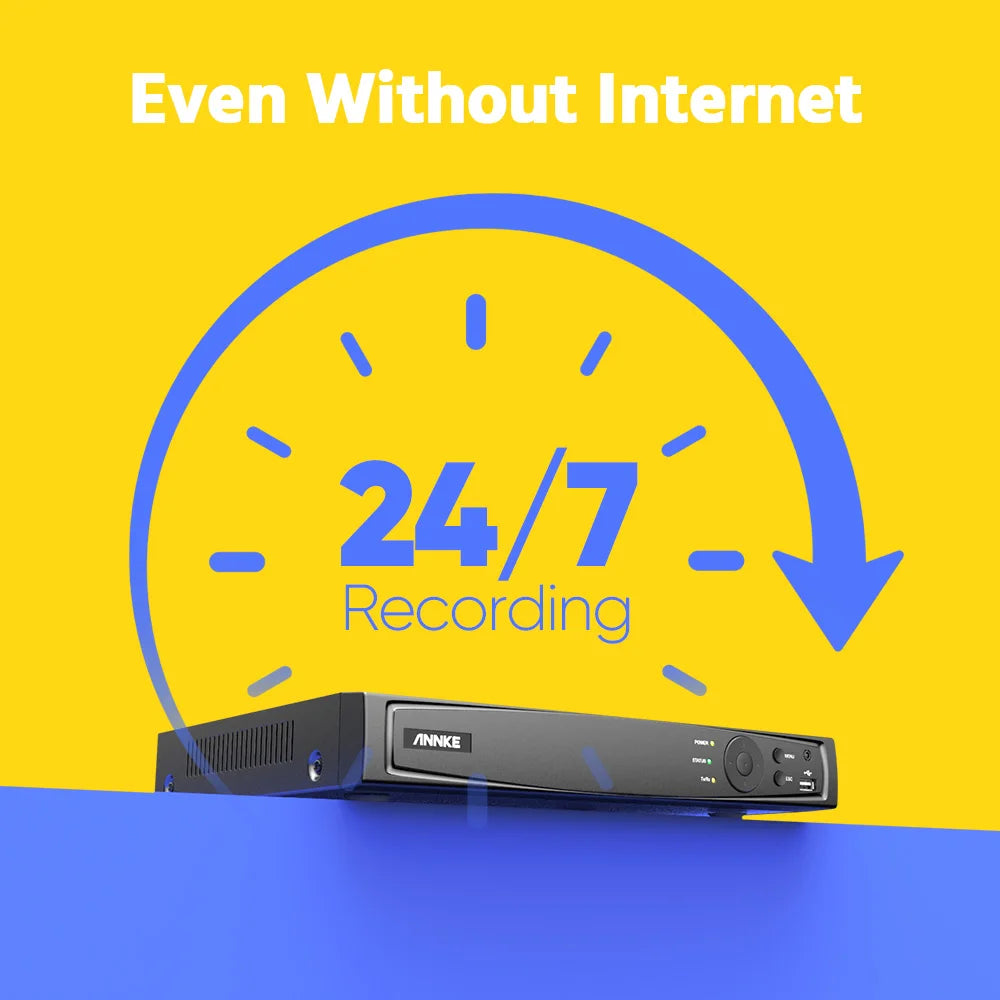

Connect the camera to the PoE NVR with just a network cable for both data & power transmission. The expandable NVR supports up to 8 ANNKE & third-party ONVIF PoE cameras (up to 4K) for all-angle coverage. Record videos 24/7 even without Internet.

NVR

Video & Audio

Video Compression

H.264+/H.264/H.265/H.265+

IP Video Input

8CH PoE

Video Output

HDMI up to 4K, VGA up to 1080p

Audio Input/Output

1/1 RCA

Incoming/outgoing Bandwidth

80/80 M

Max Recording Resolution

Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera)

Max Playback Resolution

Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera)

Max Playback Channel

8CH

Max Playback Capacity

1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

ONVIF Protocols

Support

Hard Drive

HDD

1 SATA Interface

HDD Capacity

Up to 8 TB Capacity

External Interface

Network Interface

1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at

USB interface

USB 2.0*2

Smart Function

Deep learning

Human and vehicle targets detection(Need IP camera support)

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting
detection(Need IP camera support)

General

Operating Power

DC 48 V

Power Consumption

≤10 W (Without HDD and PoE)

PoE: Max 25.5 W for Single Port

Working Temperature

14 °F ~ 131 °F/-10 °C ~+55 °C

Dimensions (W X H X D)

12.4” X 9.4” X 1.9”/315 X 240 X 48 mm

Weight (Without Hard Disk)

2.2 lbs/1 kg


8MP IP Camera

Camera

Image Sensor

1/2.4" Progressive Scan CMOS

Max resolution

3840*2160(8MP)

Main Stream

50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Substream

50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bitrate

32 Kbps - 16 Mbps

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC

Audio Input

Built-in Microphone, record with audio

Lens

4 mm

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Angle of View

Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

Supplement Light Type

Smart Dual-Light, IR, White Light

Supplement Light Range

IR: up to 30 m, white Light: up to 20 m

Motion detection 2.0

Supoort, include Human & Vehicle detection

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range

120 dB WDR

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

API

Open Network Video Interface Version (Profile S, Profile T, Profile G)

Region of Interest (ROI)

1 fixed region for main stream

Privacy Mask

4 programmable polygon privacy masks

General Function

Rotate mode, mirror, password protection, remote access

Ethernet

1 RJ45 10 M/100 M self-adaptive Ethernet port

General

Housing

Metal & Plastic

Color

White

Storage

Built-in microSD/SDHC/SDXC Slot, up to 512 GB

Hardware Reset

Yes

Operating Power

DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W

Operating Temperature

-22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use

Indoor/Outdoor

Interface Protection

IP67

Dimension (L X W X H)

Ø110 mm × 89.2 mm (Ø4.3" × 3.5")

Weight

0.7 lb./340 g


Dual-light camera: three lighting modes to choose from

1. Intelligent mode: By default, the infrared light turns on at night and the picture is black and white. When someone and a car trigger it, the infrared light goes out and the white light turns on to turn into a color picture.

2. Infrared mode: infrared fill light 30 meters.

3. White light mode: white light fill light 20 meters.
