SPECIFICATIONS

Hign-concerned Chemical: NONE

Installation Method: Aboveground

Max.current: 13A

Maximum Lifting Height (cm): 53cm

Maximum Lifting Weight (T): 5T

Operation voltage: 12V

Rated power: 150W

Type: Single Column

Description:

1.Unique and fahionable design,making it hightly individual.

2.Digital Meter to control the Tyre Pressure,much easier to operate.

3DC12V lighter powered.

4.Max.Loading car weight:5T

5.With cylinder for the pump,making the inflating speed faster.

6.With LED light,easy for night illumination.

Safety Design Eight Protections.

Parameter:

Rated power: 150W

Operation Voltage: DC12V

Max. Current: 13A

Max. Loading Car Weight: 5T

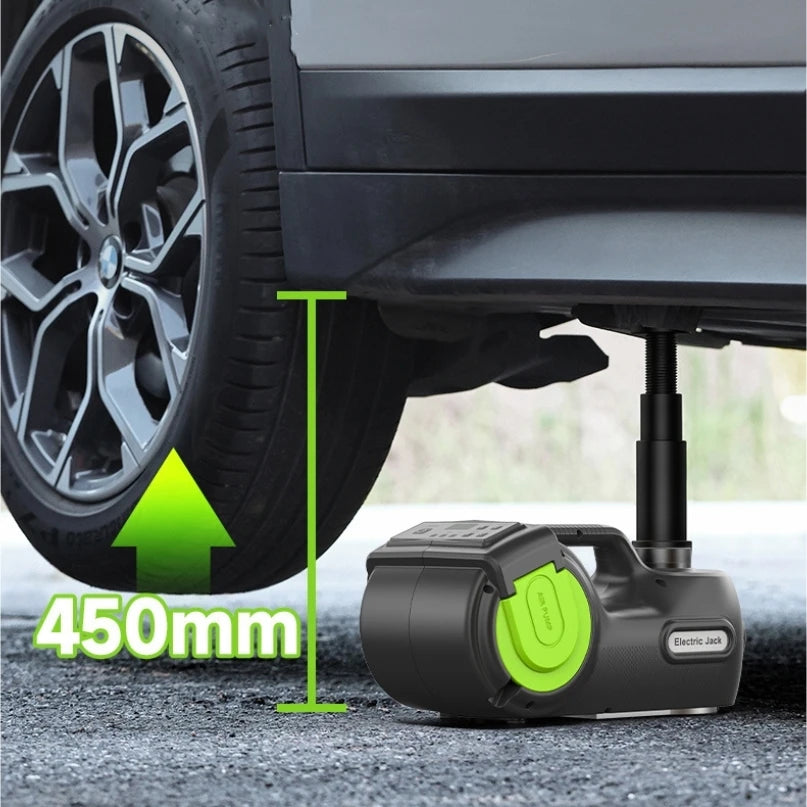

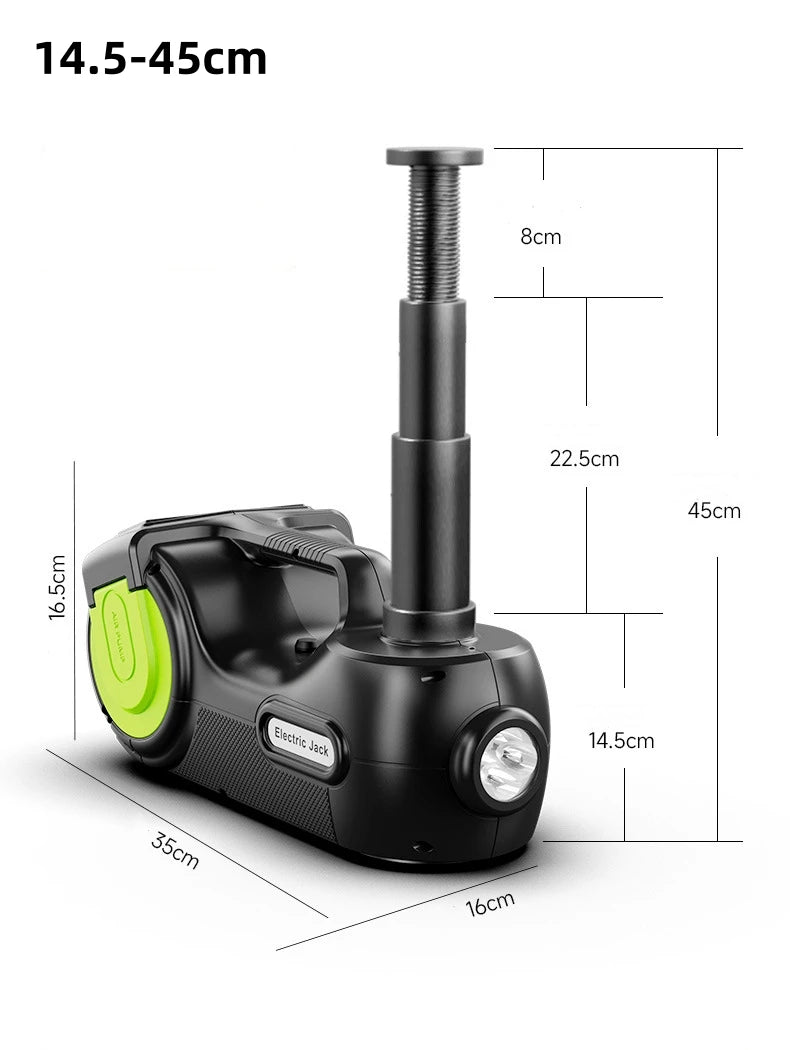

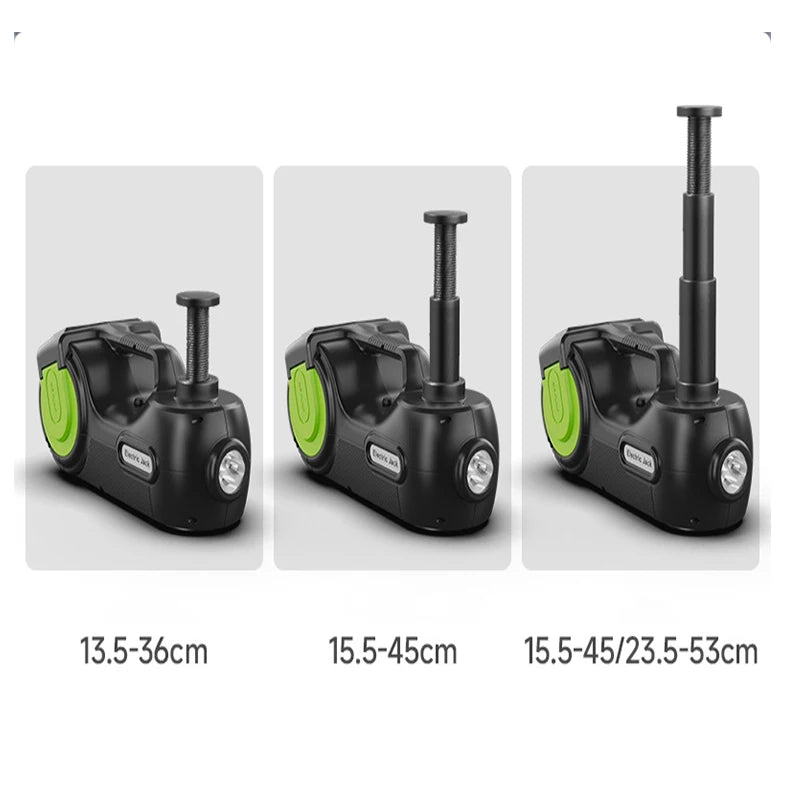

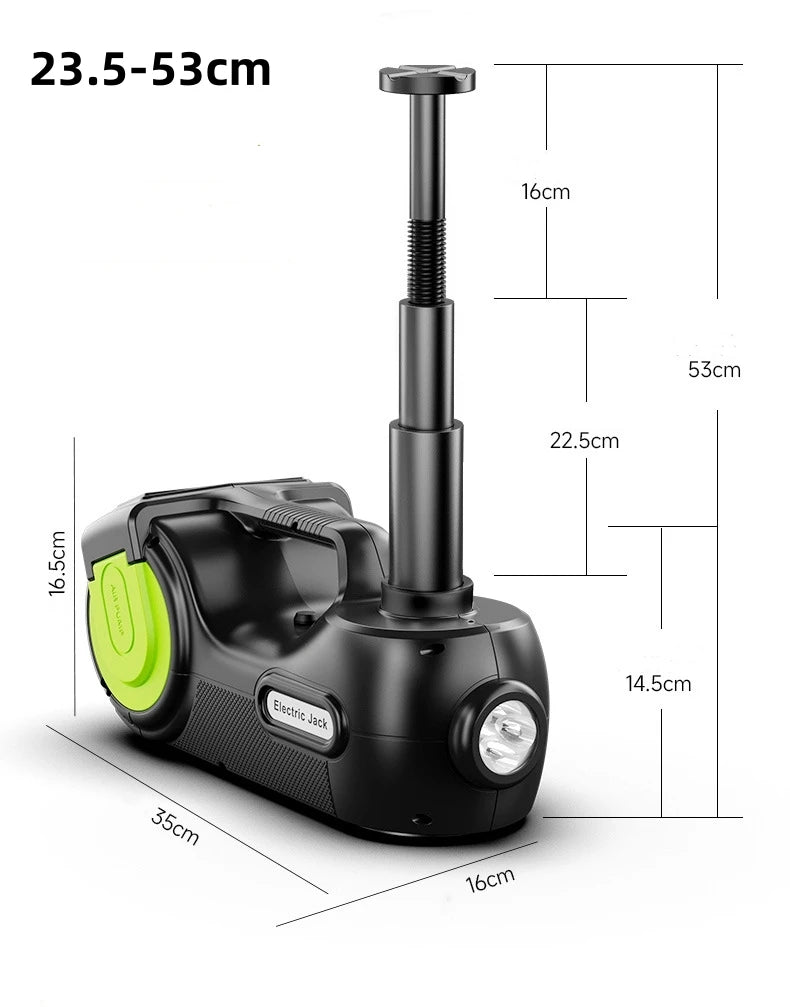

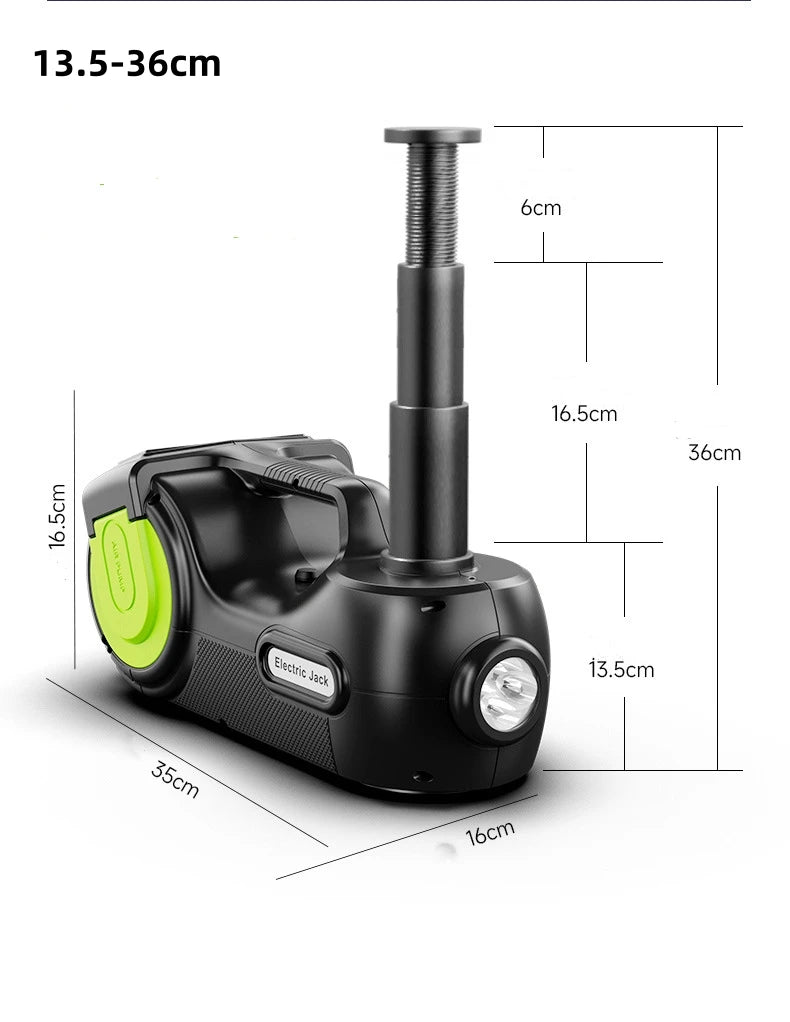

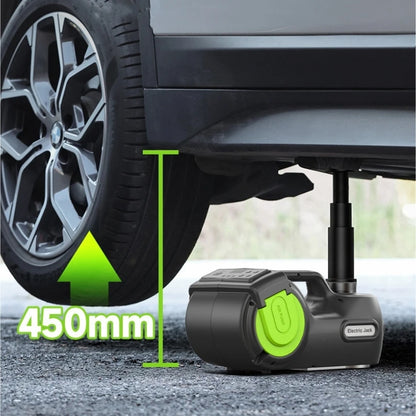

Lifting Range: 135-360/155-450/235-530(mm)

Inflating Function:

Max. Pressure: 150psi

Air Flow: 35L/min

Current: 10A

Air Hose Length: 0.65m

Power Cable: 4m

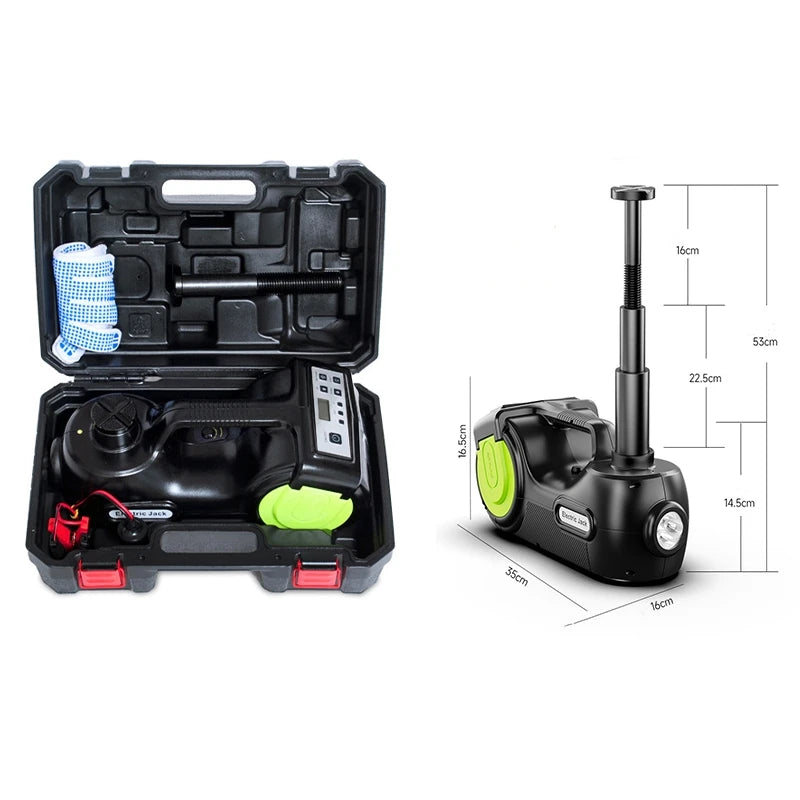

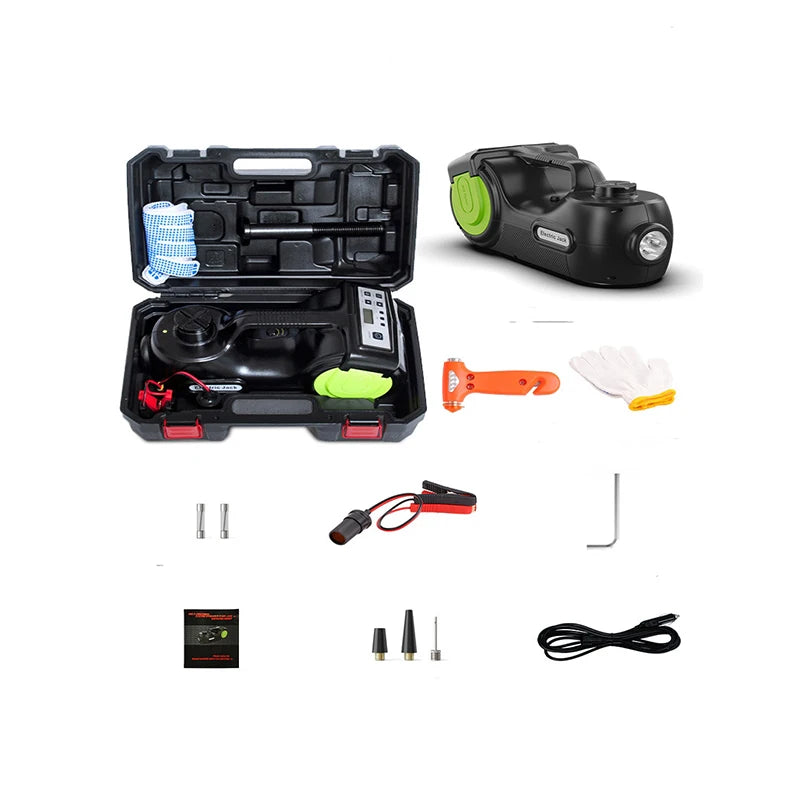

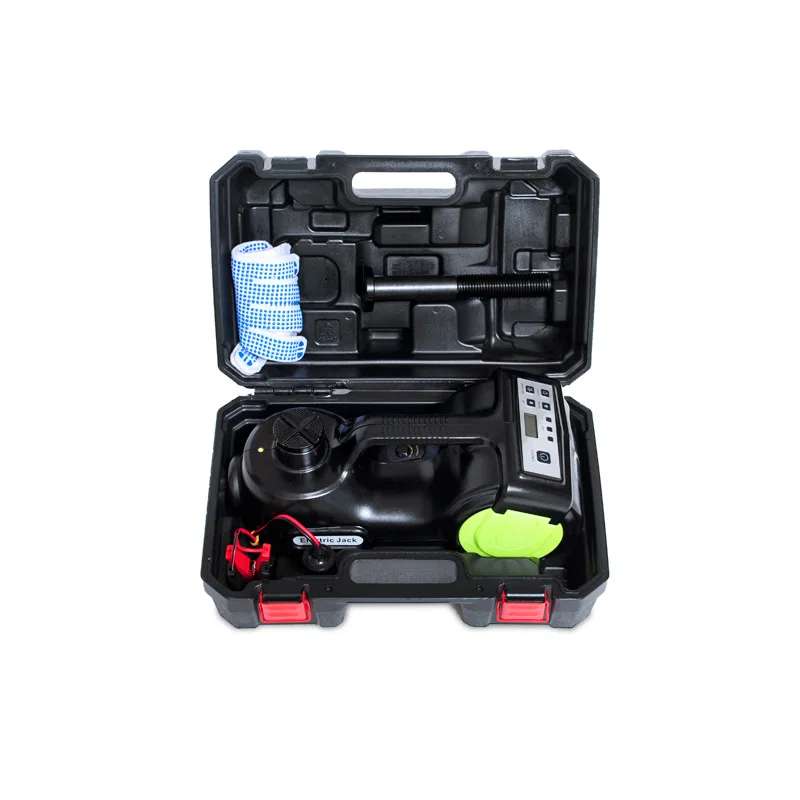

Package List:

1 * Electric Jack

1 * Battery Clips

1 * Safety Hammer

1 * Pair of Gloves

1 * Power Cable

2 * Fuses

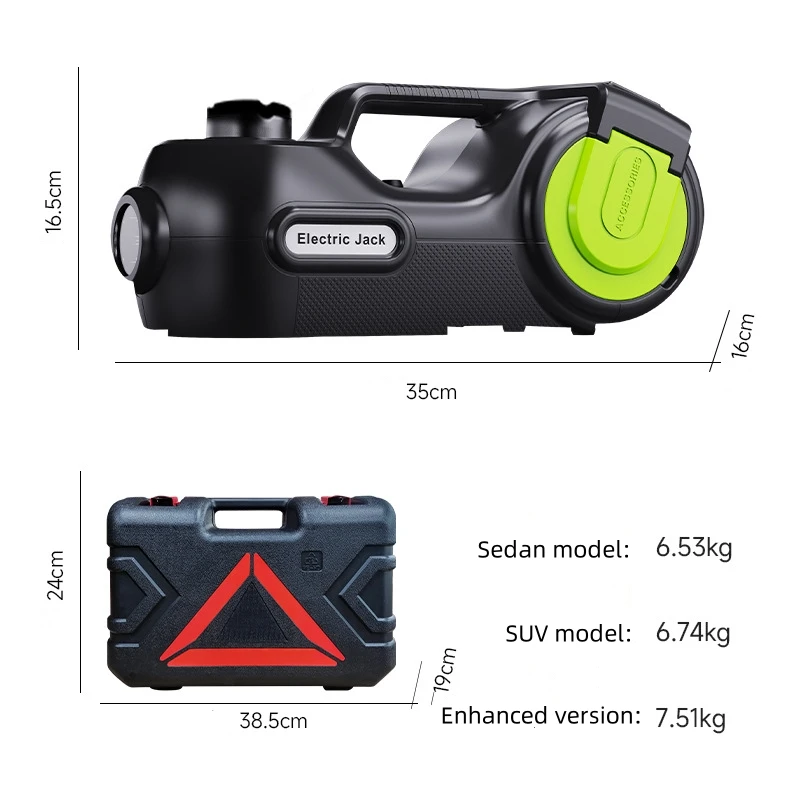

1 * Storage Case

1 * Instruction manual

Notes:

1. Please read the instruction manual carefully before use.

2. Please run once without load before use. If something goes wrong, stop using it.

3. No one except the operator can enter the bottom of the vehicle.

4. The toolset is for emergency use. Do not operate continuously for a long time.

5. Pay attention to waterproof measures.

Safety Design Eight Protections:

1.Short-circuit Protection

Prevent short-circuit occurring while two clamps are connected

2.Over-charge protection
Effectively prevent over-charge of the battery
In the jump starter

3.Over-discharge protection
Effectively prevent over-charge of the battery
In the jump starter
4.Over-current protectionProtect when discharge current too high

5.Over-temperature protection
Automatically stop working when the temperature is getting too high

6.Reverse Polarity protection
No damage happened while the clamps are connected in wrong terminals

7.Reverse-charge protection
No reverse charging back to carku unit after the vehicle started

8.Over-voltage protection
Prevent there is big voltage difference between each cell
